Description

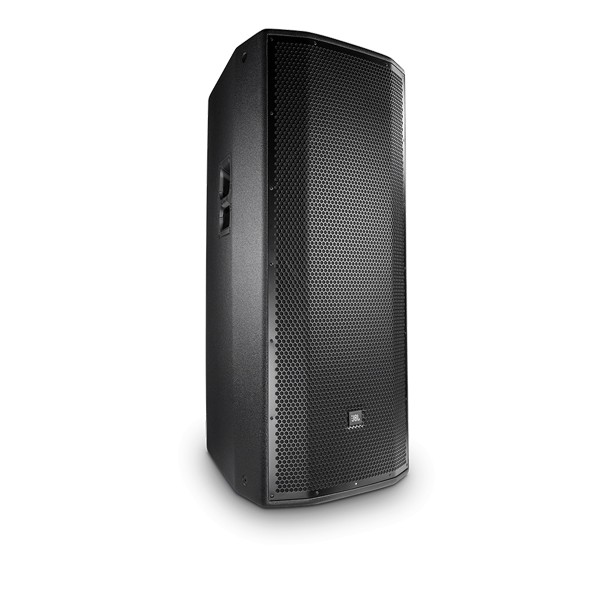

JBL PRX825W

System Type
Self Powered Dual 15”, two-way, bass-reflex
Maximum SPL Output
138 dB peak
Frequency Range (-10 dB)
Normal: 42 Hz – 18.5 kHz Boost: 40 Hz – 18.5 kHz
Frequency Response (±3 dB)
Normal: 49 Hz – 17 kHz Boost: 46 Hz – 17 kHz
Input Connectors
2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance
20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators
Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio.
